AVENIR 精工 SSE0284NI 工业镜头
| Model No | SSE0284 | SSE0284NI |
| Image Format Cover | 1/3" ～ 1/4" |
| 焦点距离 | 2.8 mm |
| MAX光圈比率 | 1 : F1.4 |
| Iris光圈 | 操作 | 手动调节 |
| Iris Range | F1.4 ～ Close |
| FocusOperation | Focus 焦点 | 手调 |
| Scale | Far Near 远近 |
视角
(D×H×V) | 1/4 inch | 87.2° × 70.3° × 53.0° |
| 1/3 inch | 117.4° × 95.6° × 72.6° |
| 2/3 inch | * * * |
| 1 inch | * * * |
| Minimum Object DistanceMIN可视距离 | 0.2 m |
| Back Focal Length 后焦长度 | 9.30 mm |
| Effective Diameter | Front 前部 | Φ19.7 mm |
| Rear 后部 | Φ8.9 mm |
| Filter Screw size | --- |
| Mount | CS / 12.5mm |
| Mechanical Dimension(D×L)机械尺寸 | φ30mm × 36.2mm |
| Weight重量 | 54.5g |
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) |

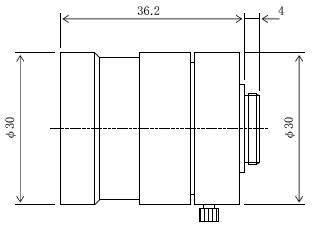

规格图
SSE0284 SSE0284NI
