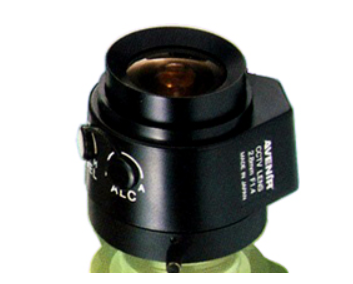

AVENIR 精工 SSG0284 工业镜头
| Model No | SSG0284 | SSG 0284NB W/PLUG |
| Image Format Cover | 1/3" ～ 1/4" |
| 焦点距离 | 2.8 mm |
| MAX光圈比率 | 1 : 1.4 |
| Iris光圈 | Control Method | 视频驱动 | 直流驱动 |
| Iris Range | F1.6 |
| 速度 | Approx. 1.5 sec | * * * |
| Input Voltage & Current | DC 8 ～ 16V Max. 30mA | * * * |
| Sensitivity Adjustment | 0.5 ～ 1.0VP-P | * * * |
| FocusOperation | Focus 焦点 | 手调 |
| Scale | * * * |
视角
(D×H×V) | 1/4 inch | 87.2° × 70.3° × 53.0° |
| 1/3 inch | 117.4° × 95.6° × 72.6° |
| 1/2 inch | * * * |
| 1 inch | * * * |
| Minimum Object DistanceMIN可视距离 | 0.2 m |
| Back Focal Length 后焦长度 | 9.30 mm |
| Effective Diameter | Front 前部 | φ19.7 mm |
| Rear 后部 | φ8.9 mm |
| Filter Screw size | * * * |
| Mount | CS / 12.5mm |
| Mechanical Dimension(D×L)机械尺寸 | φ29mm × 43.9mm × 36.2mm |
| Weight重量 | 63.3g | 64.4g |
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) |
规格图
