AVENIR 精工 SSV0770G 工业镜头
| Model No | SSV0770 | SSV0770G | SSV0770GNB |
| Image Format Cover | 1/3" ～ 1/4" |
| 焦点距离 | 7.0 ～ 70 mm |
| MAX光圈比率 | 1 : 1.8 |
| Zoom Ratio 变焦倍数 | 10.0 倍 |
| Iris光圈 | Control Method | 手动 | 视频驱动 | 直流驱动 |
| Iris Range | F1.8 ～ Close | F1.8 ～ 360 |
| 速度 | * * * | Approx. 1.5 sec | * * * |
| Input Voltage & Current | * * * | DC 8 ～ 16V Max. 30mA | * * * |
| Sensitivity Adjustment | * * * | 0.5 ～ 1.0VP-P | * * * |
| Focus 焦点 | 控制方式 | 手调 |
| Zoom 变焦 | 控制方式 | 手调 |
视角
(D×H×V) | 1/4 inch | Wide | 36.22° × 28.84° × 21.56° |
| Tele | 3.78° × 3.03° × 2.28° |
| 1/3 inch | Wide | 50.65° × 40.05° × 29.82° |
| Tele | 5.17° × 4.16° × 3.13° |
| 1/2 inch | * * * |
| 1 inch | * * * |
| Minimum Object DistanceMIN可视距离 | 0.3 ～ 1.0 m |
| Back Focal Length 后焦长度 | 13.25 ～ 18.39 mm |
| Effective Diameter | Front 前部 | φ34.6 mm |
| Rear 后部 | φ11.2 mm |
| Filter Screw size | M46.0 P=0.75 |
| Mount | CS / 12.5mm |
| Mechanical Dimension(D×L)机械尺寸 | φ55mm × 82.2mm | φ48mm × 55mm × 82.2mm |
| Weight重量 | 199.5 g | 205.5 g | 201.5 g |
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) |

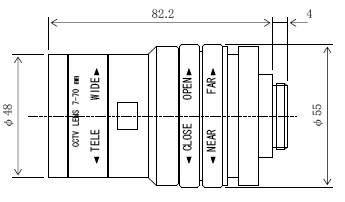

规格图
SSV0770 SSV0770GNB
